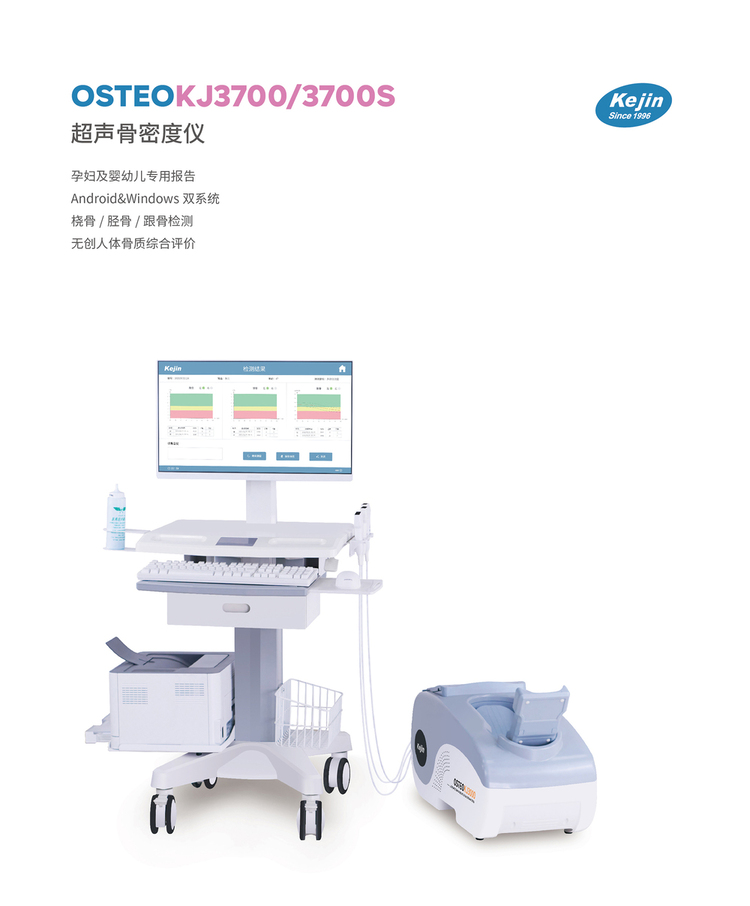

OSTEOKJ3700S BMD

Product Name: OSTEOKJ3700S BMD

Product Parameters

Measurement Site: Phalanx, Calcaneus, Patella

Product Introduction

Scope of Application

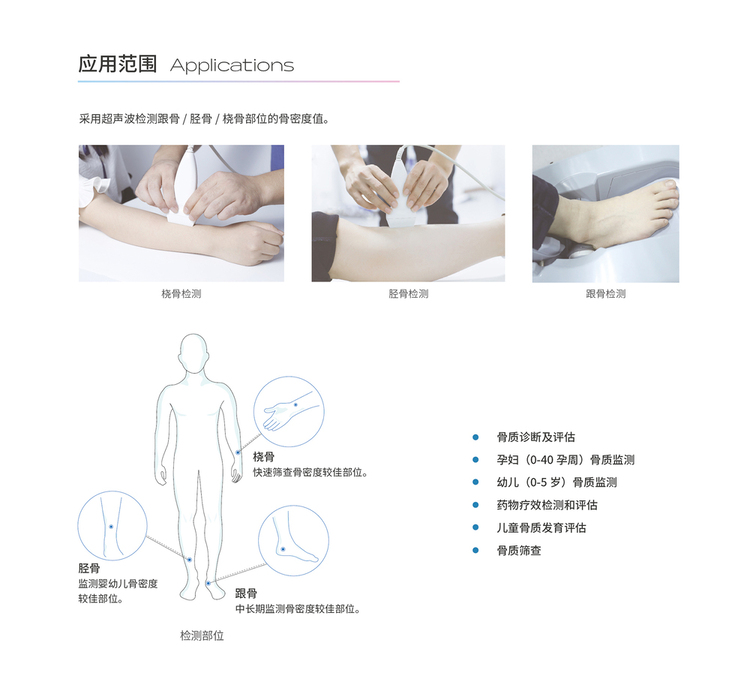

This product is suitable for bone density detection, using ultrasound to detect the bone density value of calcaneus/patella/phalanx.

Parameter Measurement, Calculation and Display

Calcaneus Mode: SOS, BUA, Osteo Index (OI), T-Score, Z-Score, T-Ratio, Z-Ratio, Bone Physiological Age, BMI, Predicted Height

Patella/Phalanx Mode: SOS, T-value, Z-value, T-Ratio, Z-Ratio, Bone Physiological Age, BQI, RRF, EOA, BMI, Predicted Height

Main unit continuous working time >8 hours, Bluetooth transmission distance not less than 5 meters.

Waterproof

Patella/Phalanx ultrasound probe waterproof level meets IPX7 requirements.

Recommended External Configuration

Normal use of this product requires external computer, printer and other equipment. Users can choose optional accessories for this product.

If users purchase and use by themselves, the purchased equipment should meet the requirements of GB9706.1-2020 and YY9706.102-2021 standards.

Data and Device Interface Description

Multi-site ultrasound BMD Windows software supports obtaining subject information from ID card reader;

Multi-site ultrasound BMD Android software supports obtaining reports via WeChat QR code, printing reports via network printer, wireless Bluetooth connection to main unit, and obtaining data from main unit.

Measurement Mode

In the pre-measurement preparation interface, you can choose "Single Site Mode" or "Multi-site Mode".

Measurable Sites: Left/Right Phalanx, Left/Right Patella, Left/Right Calcaneus. After selecting the measurement site, click "Start Measurement".

Patella/Phalanx Mode

During measurement, the interface will display subject information, real-time test curve, probe parallelism, parallelism setting, and measurement results.

Calcaneus Mode

During measurement, the interface will display subject information, real-time test curve, measurement time, measurement progress bar, and prompt "Note: Do not move the foot during measurement" for more accurate data.

When the subject is under 8 years old, the interface will play animation.
